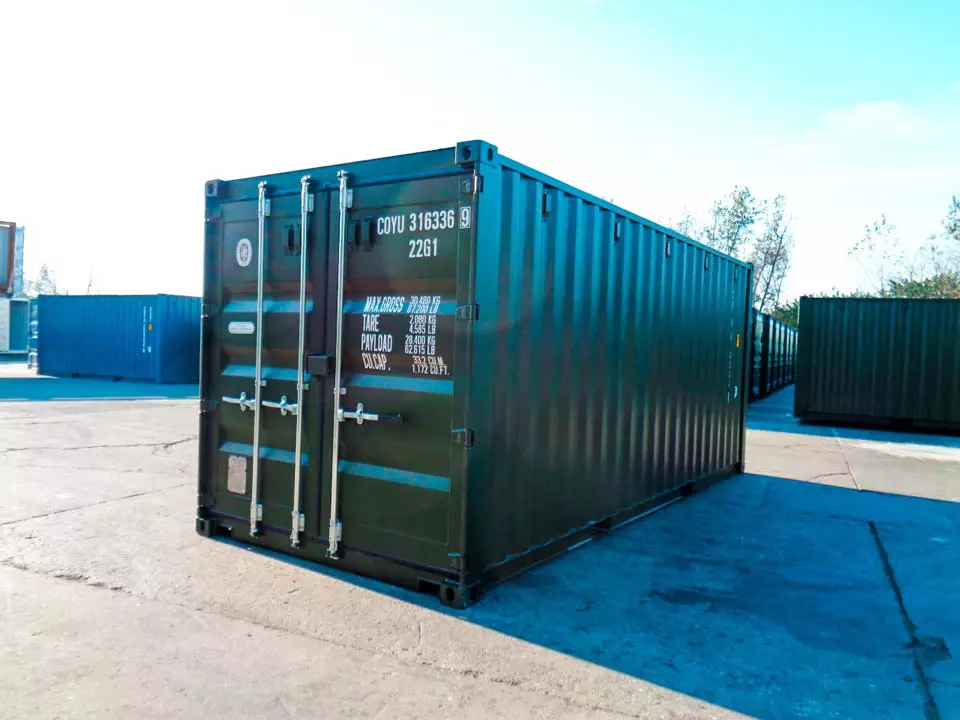

20ft Shipping Container Dimensions
| Description | Imperial | Metric |
|---|---|---|
| Maximum payload | 62,391 lb | 28,300 kg |
| Dimensions | 20' x 8' x 8'6" | 6.096 x 2.438 x 2.591 m |
| Volume | 1,165 cubic feet | 33 m3 |
| Door openings, width | 7' 8 1/16" | 2.350 m |
| Door openings, height | 7' 5 1/2" | 2.274 m |
| Internal, length | 19' 4 1/8" | 5.896 m |
| Internal, width | 7' 8 1/2" | 2.350 m |
| Internal, height to load line | 7' 10 7/32" | 2.393 m |
| Weight, gross | 67,197 lb | 30,480 kg |
40ft Shipping Container Dimensions
| Description | Imperial | Metric |
|---|---|---|
| Maximum payload | 63,640 lb | 28,870 kg |
| Dimensions | 40' x 8' x 8'6" | 12.192 x 2.438 x 2.591 m |
| Volume | 2,366 cubic feet | 67 m3 |
| Door openings, width | 7' 8 1/8" | 2.340 m |
| Door openings, height | 7' 5 1/2" | 2,274 mm |
| Internal, length | 39' 5 11/16" | 12.032 m |
| Internal, width | 7'8 1/2" | 2,350 mm |
| Internal, height to load line | 7' 10 7/32" | 2,393 mm |
| Weight, gross | 71,650 lb | 32,500 kg |
| Weight, tare | 8,010 lb | 3,630 kg |

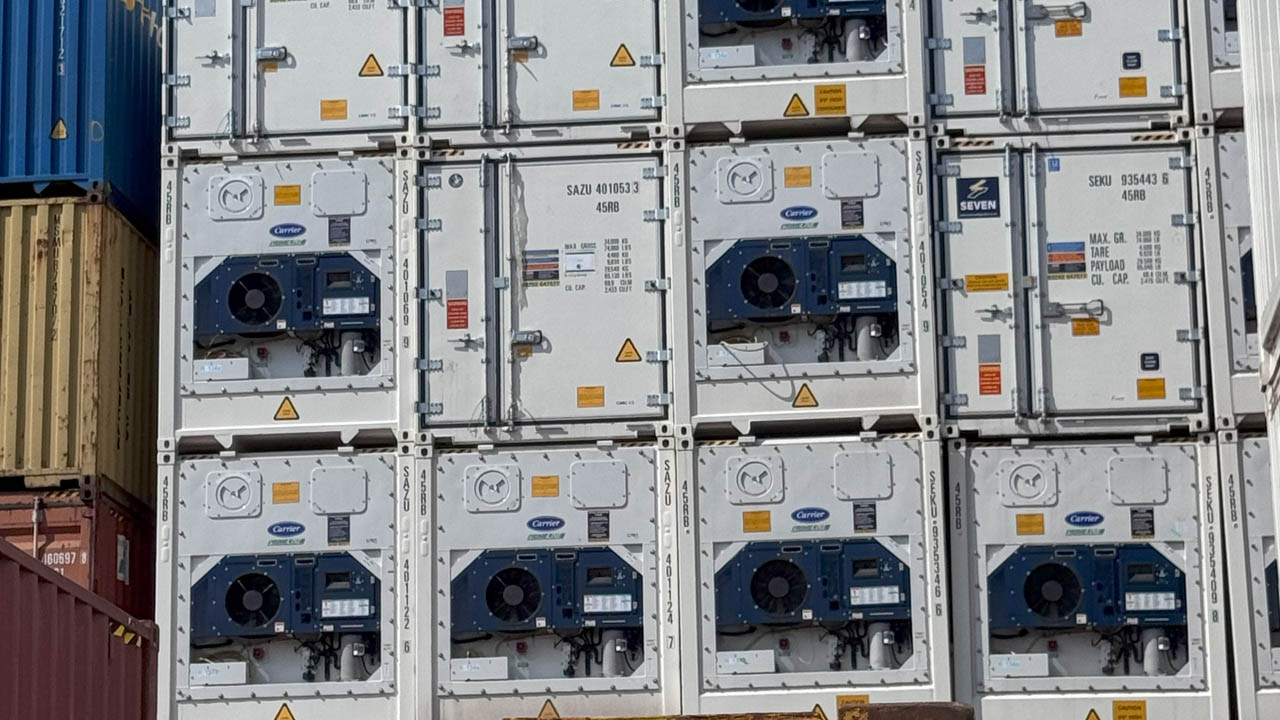

20ft Refrigerated Container Dimensions
| Description | Imperial | Metric |
|---|---|---|
| Maximum payload | 62,391 lb | 28,300 kg |
| Dimensions | 20' x 8' x 8'6" | 6.096 x 2.438 x 2.591 m |
| Volume | 1,165 cubic feet | 33 m3 |
| Door openings, width | 7' 8 1/16" | 2.350 m |
| Door openings, height | 7' 5 1/2" | 2.274 m |
| Internal, length | 19' 4 1/8" | 5.896 m |
| Internal, width | 7' 8 1/2" | 2.350 m |
| Internal, height to load line | 7' 10 7/32" | 2.393 m |
| Weight, gross | 67,197 lb | 30,480 kg |
40ft Refrigerated Container Dimensions
| Description | Imperial | Metric |
|---|---|---|
| Maximum payload | 63,640 lb | 28,870 kg |
| Dimensions | 40' x 8' x 8'6" | 12.192 x 2.438 x 2.591 m |
| Volume | 2,366 cubic feet | 67 m3 |
| Door openings, width | 7' 8 1/8" | 2.340 m |
| Door openings, height | 7' 5 1/2" | 2,274 mm |
| Internal, length | 39' 5 11/16" | 12.032 m |
| Internal, width | 7'8 1/2" | 2,350 mm |
| Internal, height to load line | 7' 10 7/32" | 2,393 mm |
| Weight, gross | 71,650 lb | 32,500 kg |
| Weight, tare | 8,010 lb | 3,630 kg |
20ft Open Top Shipping Container Dimensions
| Description | Imperial | Metric |
|---|---|---|
| Maximum payload | 62,170 lb | 28,200 kg |
| Dimensions | 20' x 8' x 8'6" | 6.096 x 2.438 x 2.591 m |
| Internal, length | 19' 4 1/4'' | 5.898 m |
| Internal, width | 7' 8 5/8'' | 2.352 m |
| Internal, height | 7' 8 1/2'' | 2.348 m |
| Roof opening, length | 18' 1/16'' | 5.490 m |
| Roof opening, width | 7' 3'' | 2.210 m |
| Weight, gross | 67.197 lb | 30480 kg |
| Weight, tare | 5.027 lb | 2280 kg |
